Premium 6063 Grade Aluminum
Our 6063 grade aluminum is a high-quality alloy known for its excellent extrudability, corrosion resistance, and smooth surface finish. Ideal for architectural applications, window frames, door frames, and precision components.
Available Forms

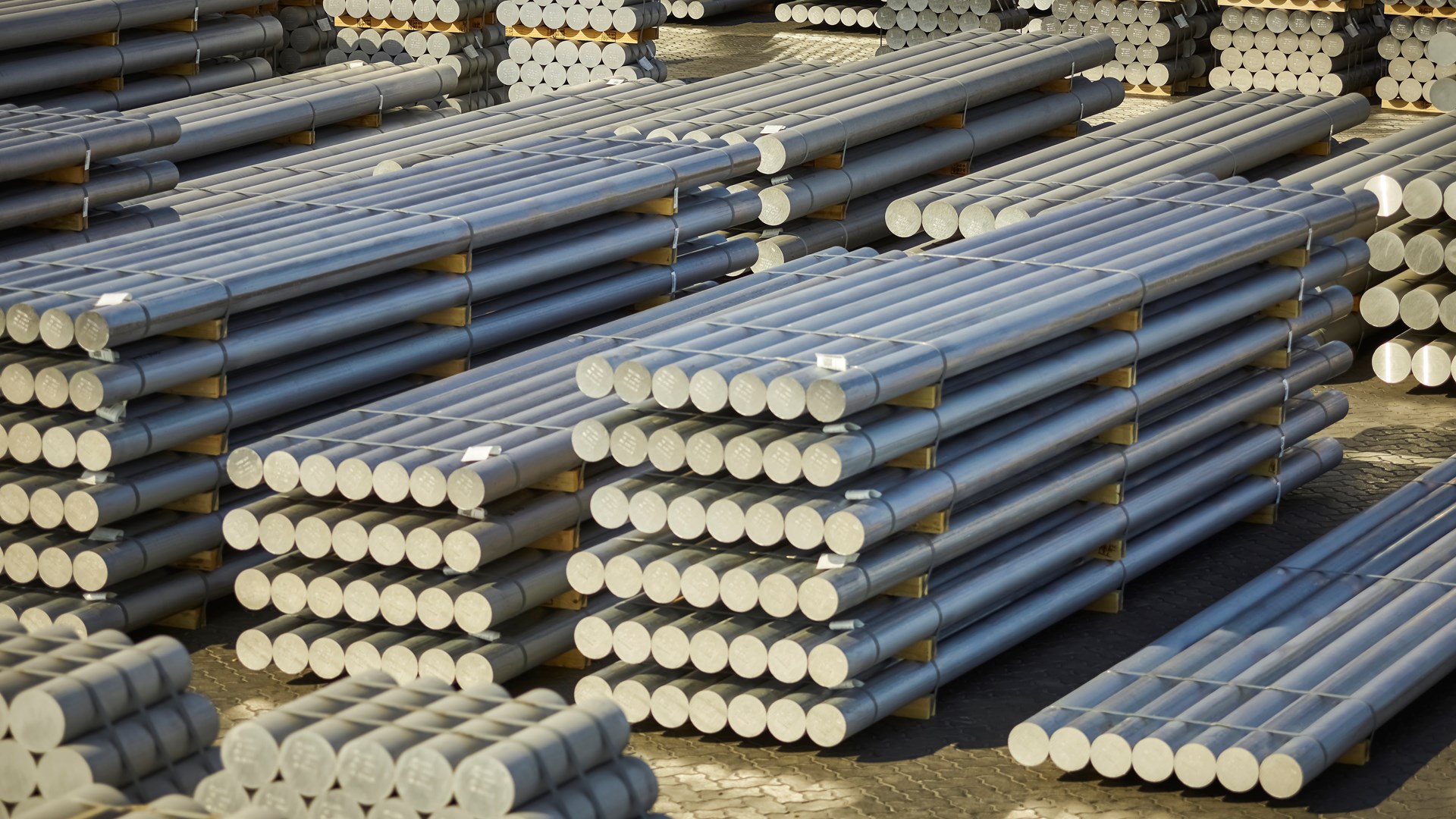

Extrusions, rods, bars, tubes, and custom profiles
Typical Applications
Architectural components, automotive trim, furniture
Key Specifications
| Alloy | 6063 |
| Temper | T5, T6 |
| Tensile Strength | 186 MPa (27,000 psi) |
| Yield Strength | 145 MPa (21,000 psi) |
| Elongation | 12% |
Product Description
6063 is an aluminum alloy with magnesium and silicon as its major alloying elements. It has good mechanical properties and is heat treatable. The alloy is primarily used for extruded shapes and has good extrudability, surface finish capabilities, and corrosion resistance.
Our 6063 grade aluminum is sourced from premium suppliers and undergoes strict quality control to ensure consistent performance in your applications. We offer this alloy in various forms and can provide custom cutting services to meet your specific requirements.
Technical Specifications
Chemical Composition
- Aluminum (Al): Balance
- Magnesium (Mg): 0.45-0.9%
- Silicon (Si): 0.2-0.6%
- Iron (Fe): 0.35% max
- Copper (Cu): 0.1% max
Physical Properties
- Density: 2.69 g/cm³
- Melting Range: 615-655°C
- Thermal Conductivity: 201 W/m-K
- Electrical Conductivity: 50% IACS
Common Applications
Architectural
Window frames, door frames, roofing, and curtain walls
Automotive
Trim, decorative parts, and structural components
Furniture
Lightweight frames, fittings, and decorative elements
